Center Pivot | Irrigation Filter

Center Pivots

2. Center Pivot Irrigation System (Fixed Pivot) The advantage of the center pivot is that it takes less labor and water to irrigate 13-130ha from one water feeding point. Our heavy duty design allows for up to 11 spans (650m) with angles and bolt pivot anchors strong enough to withstand high winds.
2. Center Pivot Irrigation System (Towable Pivot) The towable center pivot allows farmers to manually move the irrigation system in the field. The direction of the mobile pivot may change while it is working or being towed. When towing, lock the tire position so you have more control.

Lateral Move Systems

2. Lateral Move System (Ditch Feed) With lateral move irrigation systems that use ditch feeds as a water source, there are two ways to build the ditch-with cement bricks or geomembranes. In a lateral move center, water is piped from the ditch to the sprinkler. Pump and diesel engines are installed on the center pivot's cart.
2. Lateral Move System (Hose Feed)A lateral move system using a hose feed works in a linear movement to irrigate a rectangular area.
  Water is fed to the irrigation system by a flexible hose attached to the machine. The size of the hose is 6’ and 8’. The length can stretch from 1 span to 7 spans.

Stainless Steel Center Pivot Irrigation System (New Invention)

2. Stainless Steel Center Pivot System Just-Fine PVC-lined pipes, stainless steel pivot joints and control panel come with a 20-year warranty, with the superior quality and long service life.
  Just-Fine PVC-lined pipe is the the perfect solution for corrosive, acid and saline water.
2. Pivot Tire (Non-Pneumatic Irrigation Tire) Pivot tire segments are made using high quality rubber
  Superior quality UV resistant material added
  10×38” standard galvanized rim

Floating Pump Station

2. Floating Pump Station Because of the extremely high cost of investment for traditional pump stations, the government is the primary source of funds.
  If the government cannot build these pump stations, the people living in these areas sometimes suffer greatly as a result.

Chemical Injection Pump

2. Chemical Injection Pump The chemical injection pump, or called chemical dosing pump can transport chemicals that are high-viscosity, corrosive or dangerous.
  The chemical injection pump prevents back flow and leaking when water pressure is low.

Irrigation Filter

2. Irrigation FilterThe irrigation filter system is specially designed for center pivots.
  Finely crafted in our workshop, the drip irrigation filter is galvanized with ASTM A 123/123m-02 and leaving no residual dross.

Center Pivot Parts (Irrigation Components)

2. Heavy Duty GearboxThis gearbox is specially designed for warm climates where irrigation is needed more than 300 days per year.
  The output shaft of this center pivot part has a 2-1/4" diameter.
2. Gear MotorRainfine’s center pivots move thanks to our electric gear motors, as indispensable irrigation components.
  These high quality worm gear motors are made to have a long service life.

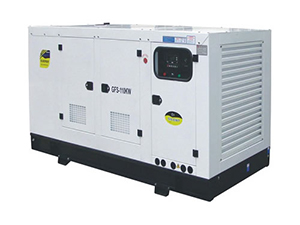

2. Diesel Generator12V/24V charge alternator.
  Engine battery with battery charger, loose silencer, elbow pipe, supplied with expansion joint.
  Dry air filter, fuel filter, oil filter.
2. Auto Reverse and Stop System Due to the terrain, barns and houses, or other obstacles, the pivot system may not be able to make a full circle. The auto reverse and stop system automatically makes the pivot stop and reverse when encountering such obstacles. If any of the towers runs into an obstacle the automatic pivot system will stop to avoid collision.
2. Irrigation Pipe (Hot Dip Galvanized Steel) Each of our sprinkler parts use hot dip galvanized steel, made in one of China’s leading galvanizing workshops. Our irrigation pipes have a thickness of 3mm, which is higher than the U.S.’s 2.0 - 2.5mm standard of pivot manufacturers according to ASTM A 123/123m-02.
2. Gooseneck (Hot Dip Galvanized Steel)We make durable and long lasting pipe fittings and pipe drill processing systems using galvanized steel pipes. This technology givesgooseneck pipes a strong connection to pipe outlets, reducing any damage to the gooseneck when the sprinklers vibrate.

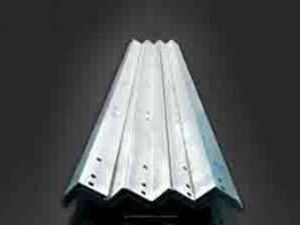

2. Angle and Truss Rod (Hot Dip Galvanized Steel)The truss design is the most important part of pivot irrigation systems.
  This truss rod can withstand 60,000psi. We use 22mm diameter rods instead of 19mm, making our truss rods stronger than others on the market.
2. Irrigation Control PanelFused disconnect in automatic panel rated 600V at 30 amps.
  Forward / reverse contactors rated 600v at 30 amps.
  Our main control also supports:
  Running direction.
2. Pipe Coupling (Aluminum) This flexible joint design of our aluminum pipe coupling supports all the strength of the pivot and makes the pivot flexible enough to adapt to varied terrain. Because the aluminum coupler will break when the spans are not in proper alignment, causing water to leak and the water pressure to drop ...
2. Pivot Tire, Non-Pneumatic Irrigation Tire (Rubber)We provide three different options for our rubber pivot tires:
  11.2×38: Good clearance and flotation.
  14.9×24: Tubeless tire 4ply, for heavier and longer spans.
2. Sprinkler Parts (Nelson Sprinkler 3000 Series)A fixed-spray sprinkler which produces a variety of patterns depending upon specific spray plates.
  Designed for more sensitive crops and soils.
  Crop-guarded body for low energy.
2. Sprinkler Parts (Senninger Sprinkler UP3)The irrigation sprinkler has a variety of interchangeable deflector pads to meet specific crop, climate, and soil requirements. The design makes the spray nozzle ideal for surface water due to the distance between the nozzle and deflector and the bracket legs.
2. End Gun (Pivot)Slow, steady and uniform forward and reverse drive action; Pivot gun doesn’t require solenoid when used in conjunction with a booster pump.
  Heavy-duty construction ensures long service life and reliability;

Stainless Steel Center Pivot and Lateral Move Irrigation System
