Sprinkler Parts (Nelson Sprinkler 3000 Series)

  • Gear Motor
  • Gear Motor
  • Gear Motor
  • Gear Motor
Inquiry Form
R3000 .
S3000 .
D3000 .
PSI 6 10 15 20 25 30 35 40 45 50
BAR 0.41 0.7 1.0 1.4 1.7 2.0 2.4 2.8 3.1 3.4

D3000 Sprinkler
A fixed-spray sprinkler which produces a variety of patterns depending upon specific spray plates;
Flip-over dual spray allows easy conversion of spray patterns;
Choose spray plate options to germinate, irrigate, or chemigate;
Optional hose drag adapter for Low Energy Precision Application - LEPA;
Part circles available.

S3000 Sprinkler
Gentle spray at low pressure;
Utilize a free-spinning acting to produce a gentle, rain-like sprinkler pattern;
Designed for more sensitive crops and soils;
Superior uniformity with better overlap and lower application rates;
Crop-guarded body for low energy;
Part circles available.

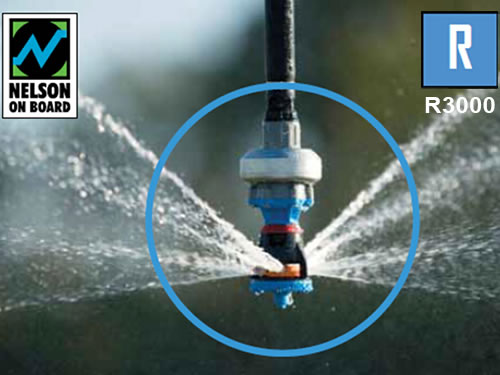

R3000 Sprinkler
A greater spray radius from rotating streams equates to lower average application rates, longer soak times and less runoff;
Increased overlap from adjacent sprinklers improves uniformity;
Reduces wind drift and evaporative loss;
Part circles available.

O3000 Sprinkler
Outstanding uniformity at low operating pressures;
Unassembled bracket eliminates debris hang-up and water-pattern misting that’s common to conventional sprinklers;
Long service life, reliable operation and durability;
Excellent water application, 10-20 PSI operating pressure;
Wind resistant, maximum water and energy conservation.

Color-Coded Nozzles
The 3TN nozzle system is at the center of the 3000 Series pivot product line with easy-to-identify, wear-resistant, and precision nozzles. The quick-change adapter allows you to remove the rotator for easy cleaning without extra tools or having to shut down the system. Change the nozzles mid-season without any hassle.

Versatile Modular Design
Because no one sprinkler is perfect in all conditions, the 3000 Series features a modular design with components that are easily switched out. You may start the season with one configuration and change to a different one later on.

Technical Parameters
Sprinkler &
Plate Type
Description Pressure
Range
3TN Nozzle
Range
Throw Diameter Data**
(no-wind tests)
Minimum Maximum
UpTop Application U4-8°
Blue Plate
For up-top
applications:
Utilizes 4 low-trajectory
streams for excellent
coverage and wind-fighting
ability at higher pressures.
20-50 PSI
1.4-3.4 BAR
#14
@ 30 PSI
(2.0 BAR)
#16
for lower
pressures
#50 Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht.
12 ft. (3.7 M)
Throw Diameter
70 ft. (21.3 M)
Multi-Trajectory
WHITE Plate
For up-top
applications:
Designed with multiple
trajectory streams for superior
up-top performance at low
pressures.
15-30 PSI
1.0-2.0 BAR
#14
@ 15 PSI
(1.0 BAR)
#50 Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht.
12 ft. (3.7 M)
Throw Diameter
74 ft. (22.6 M)
Drop Tube Application D4-8°
Green Plate
For drop tube
applications:
Utilizes 4 low-trajectory
streams for maximum
coverage and
wind-fighting ability.
20-50 PSI
1.4-3.4 BAR
#14
@ 30 PSI
(2.0 BAR)
#16
for lower
pressures
#50 Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht.
9 ft. (2.7 M)
6 ft. (1.8 M)
Throw Diameter
72 ft. (21.9 M)
64 ft. (19.5 M)
D6-12°
Red Plate
For drop tube
applications
6 medium-trajectory,
diffused streams provide
droplet breakup with low
stream height.
15-30 PSI
1.0-2.0 BAR
#14
@ 15 PSI
(1.0 BAR)
#50 Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht.
9 ft. (2.7 M)
6 ft. (1.8 M)
Throw Diameter
66 ft. (20.1 M)
58 ft. (17.7 M)
Multi-Trajectory
Orange Plate
For drop tube
applications
Designed with multiple
trajectory streams to
penetrate the upper
canopy of tall crops.
15-30 PSI
1.0-2.0 BAR
#14
@ 15 PSI
(1.0 BAR)
#50 Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht.
9 ft. (2.7 M)
6 ft. (1.8 M)
Throw Diameter
72 ft. (21.9 M)
66 ft. (20.1 M)
Multi-Trajectory
Brown Plate
For drop tube
applications:
10 multiple trajectory streams
provide maximum uniformity
and superior performance on low
growing crops like potatoes.
15-30 PSI
1.0-2.0 BAR
#14
@ 15 PSI
(1.0 BAR)
#50 Coverage @ 30 psi (2.0 BAR) #32 Nozzle Mounting Ht.
9 ft. (2.7 M)
6 ft. (1.8 M)
Throw Diameter
68 ft. (20.7 M)
62 ft. (18.9 M)
