Diesel Generator

Product Description
1. Diesel Engine (50Hz, 1500rpm)
Standard for radiator mounted on skid
Fans are driven by belt, with safety guard
12V/24V charge alternator
Engine battery with battery charger, loose silencer, elbow pipe, supplied with expansion joint
Dry air filter, fuel filter, oil filter
Standard tool kit

2. Brushless Alternator
Single bearing AC brushless alternator
P23, insulation class H, with AVR

3. Mainline Circuit Breaker
Manual control panel with meters and smartgen protection HGM180HC;
Standard 3P circuit breaker for overload and short circuit protections

4. Genset Controller
8 to 10 hours base fuel tank
Absorber and muffler

Technical Parameters of Rainfine Diesel Generator
Technical Parameter of Diesel Generating Set GENSET GFS-8KW GFS-10KW GFS-12KW GFS-15KW
Rated Power kw 8.0 10.0 12.0 15.0
Apparent Power kva 10.0 12.5 15.0 18.8
Standby Power kw 8.8 11.0 13.2 16.5
kva 11.0 13.8 16.5 20.6
Rated Voltage v 110~480v
Power Factor Cos Φ 0.8
Rated Speed rpm 1500
Phase 3
Rated Frequency Hz 50
Fuel tank hours 8~10
Packing Dimension (packing) mm 1700×900×1130 1700×900×1130 1800×900×1130 1800×900×1130
G/Weight (packing) kg 640 690 740 760
Diesel Engine Engine Model Y380D/10KW YD480D/14KW YD485D/15KW YND485G/17KW
Rated Power KW 10 14 15 17
No. of Cylinder 3 4 4 4
Configuration Vertical, in-line, water-cooled, four stroke, direct injection
Bore×Stroke mm 80×90 80×90 85×90 85×95
Compression Ratio 18
Displacement L 1.357 1.809 2.043 2.156
Fuel Consumption g/kw.h 247 245 245 245
Firing order 1~3~2 1~3~4~2
Starting System electric start with batter
Lubrication method L Splash, pressure
Net weight kg 165 195 200 200
Dim. L×W×H mm 587×494×610 687×494×610 687×494×623 687×494×623
Steady regulation % less than 4
Exhaust Temperature oC less than 550
Alternator Alternator Model YHG-8KW YHG-10KW YHG12KW YHG-15KW
Rated Power kw 8 10 12 15
Kva 10 12.5 15 18.75
Bearing single bearing
Excitation Type brushless
Cooling Fan Cooling
Material 100% Copper wire, Cold rolled steel stator and rotor, steel frame, cast iron cover, import ball bearings
AVR SX460
IP 23
Protective Grade H

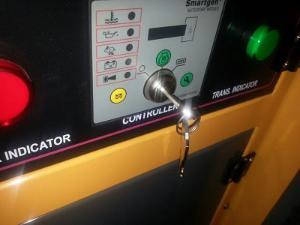

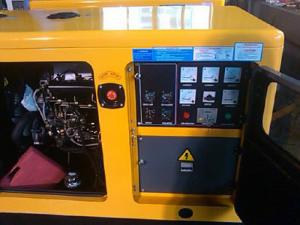

CONTROL SYSTEM MANUAL CONTROL PANEL WITH SMARTGEN BRAND PROTECTION MODLE.HGM180
1. Water temp meter 2.oil pressure meter 3.ampere meter 4. fuel meter 5.current meter 6.current 3 phase switch 7.voltage meter 8.voltage 3 phase switch 9.frequency meter 10. Smartgen HGM180HC protection.
