Center Pivot Irrigation System (Towable Pivot)

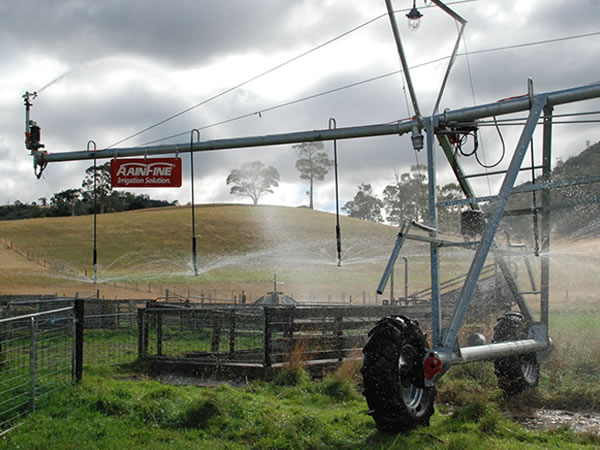

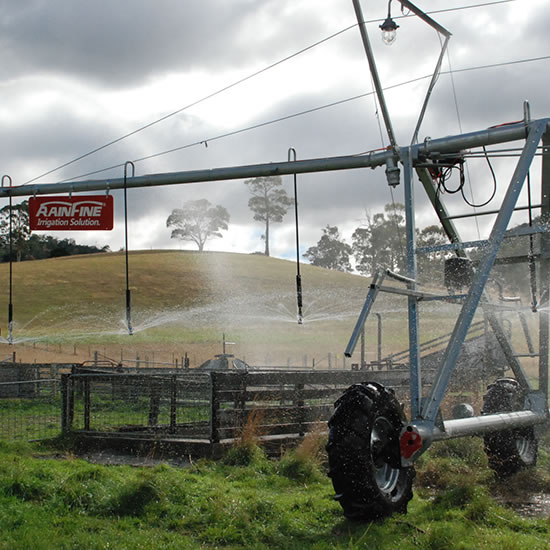

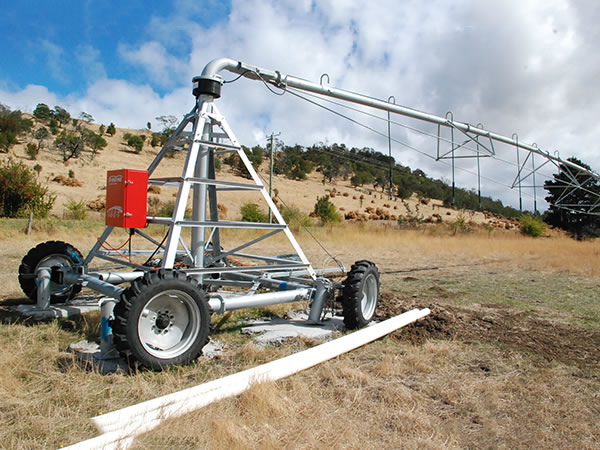

Towable Center Pivot

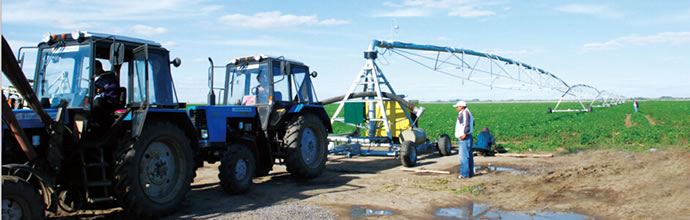

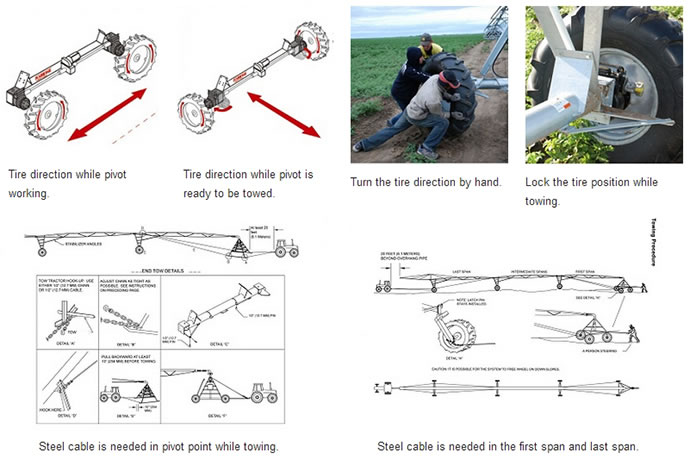

The towable center pivot allows farmers to manually move the irrigation system in the field. The direction of the mobile pivot may change while it is working or being towed. When towing, lock the tire position so you have more control. A steel cable attached to the first and last span is needed to tow the center pivot.

Users' Guide
Click the buttons to see more details about our center pivot irrigation machine:
  • 1. Pivot Point
  • 2. Diesel Generator
  • 3. Spans
  • 4. Overhang
  • 5. End Gun
  • 6. Sprinkler
  • 7. Chemical Injector
  • 8. Multiple Filters
  • 9. Auto Reverse and Stop System
  • 10. Shipment2
  • 11. Installation
  • 12. Spare Parts and Guarantee

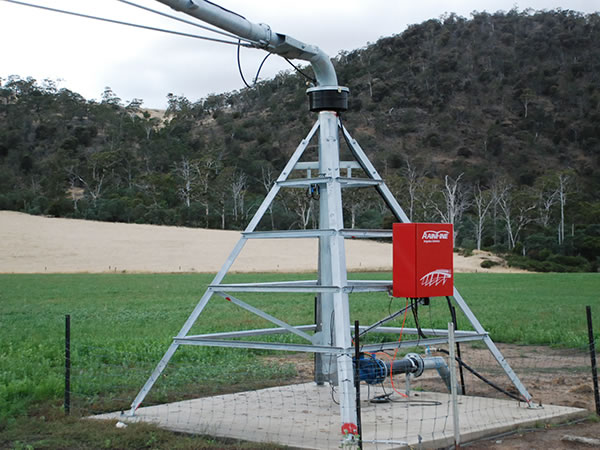

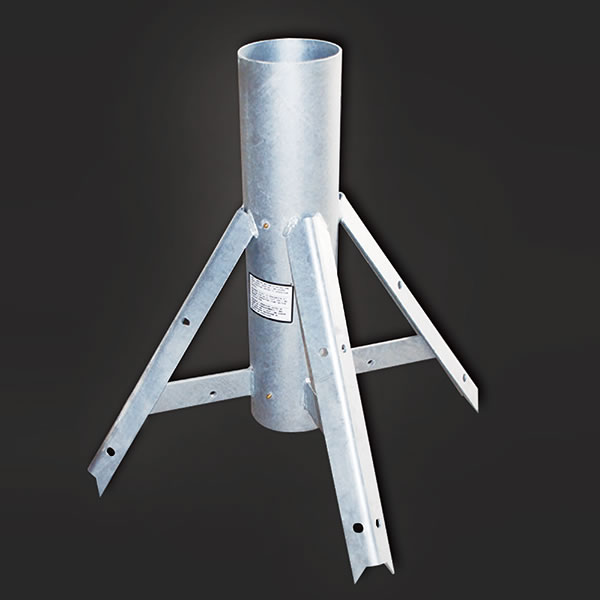

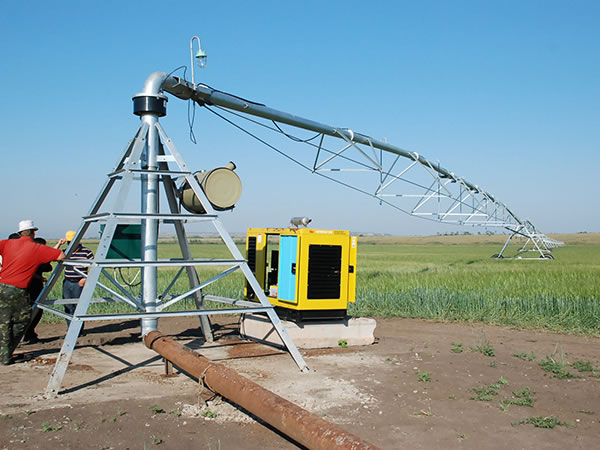

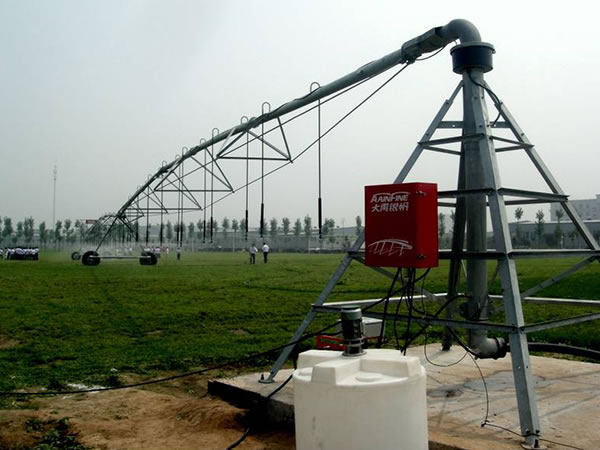

1. Pivot Point

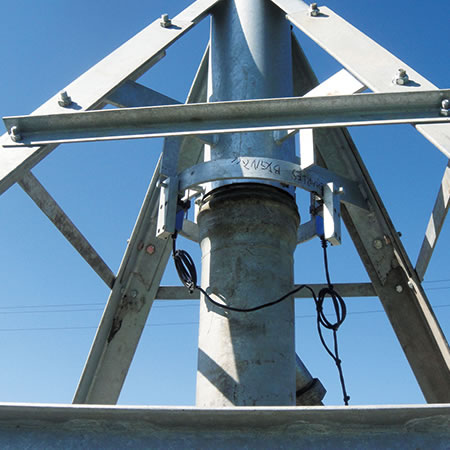

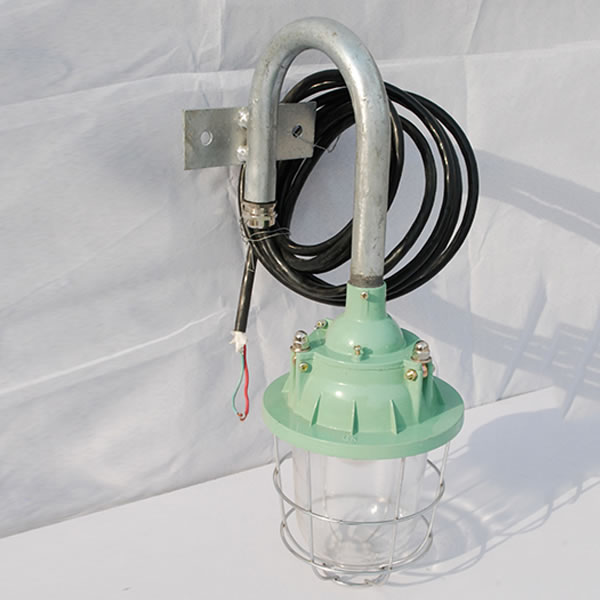

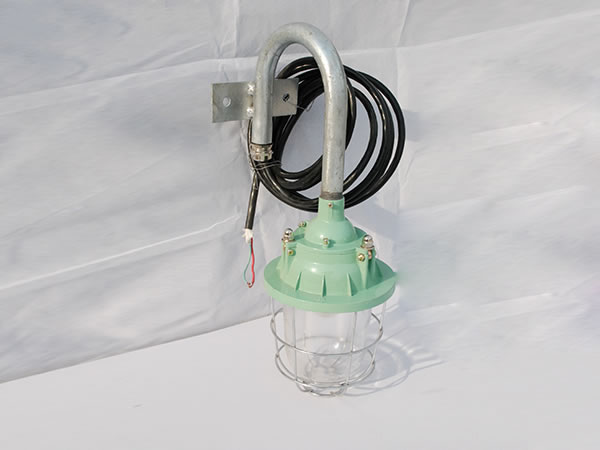

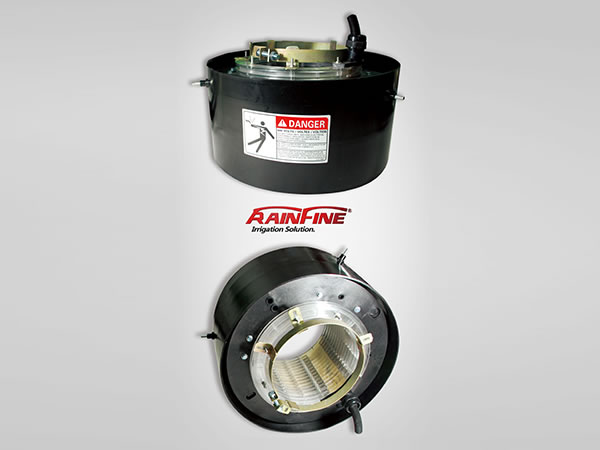

Our fixed hot dip galvanized steel central tower has a main panel with an automatic shutdown and reverse system, pressure gauge, pivot point light and electrical collector ring.

Pivot point specifications

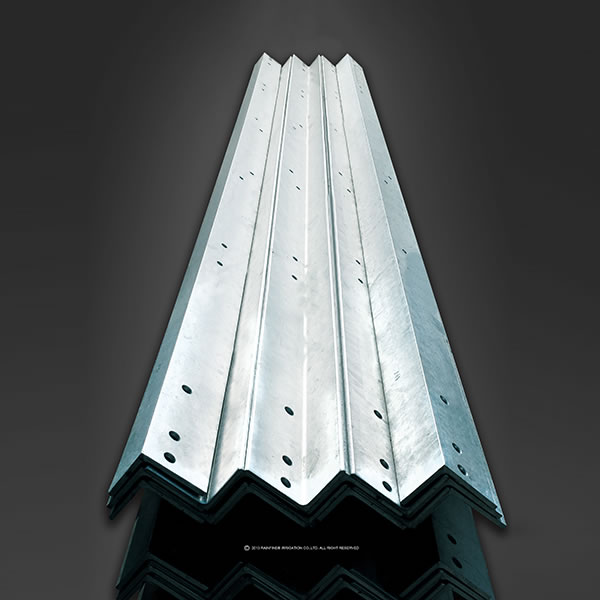

Leg angle size: 100mm×100mm×10mm thickness

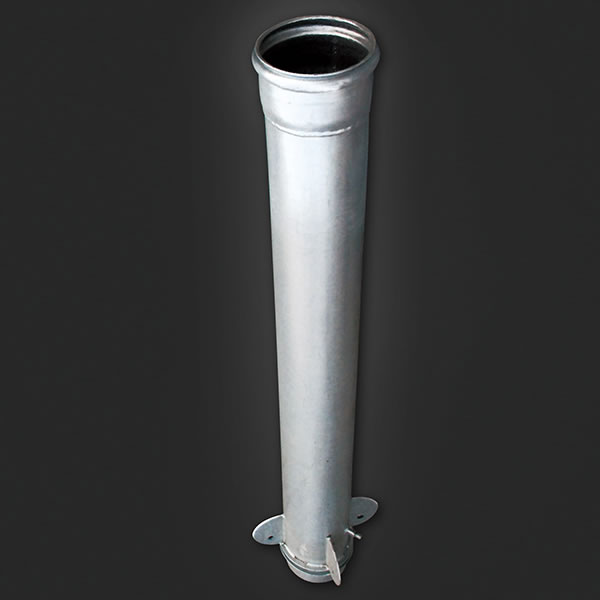

Riser: 8"×3mm
Elbow: 8"×3mm thickness

A special design forms a solid anchor for even the longest irrigation systems.

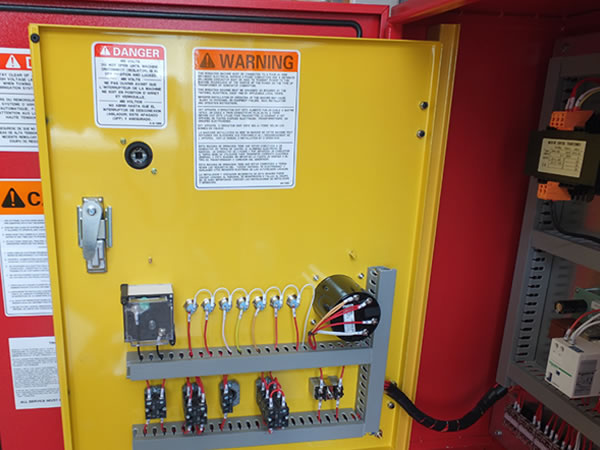

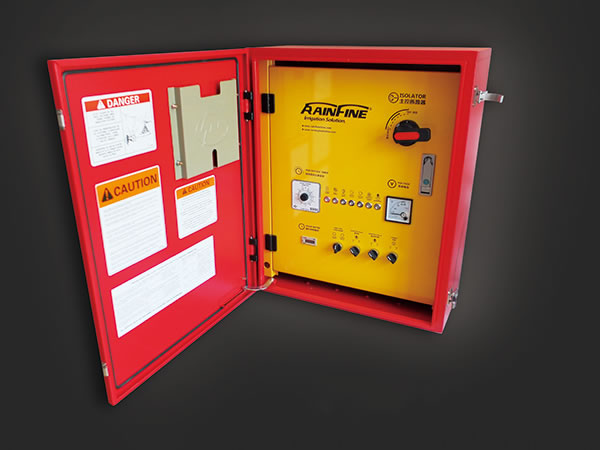

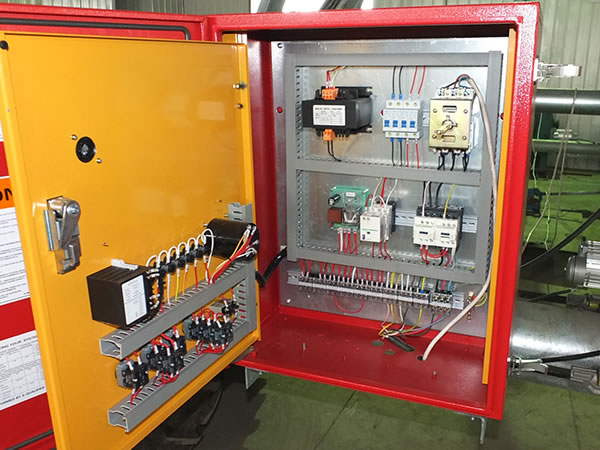

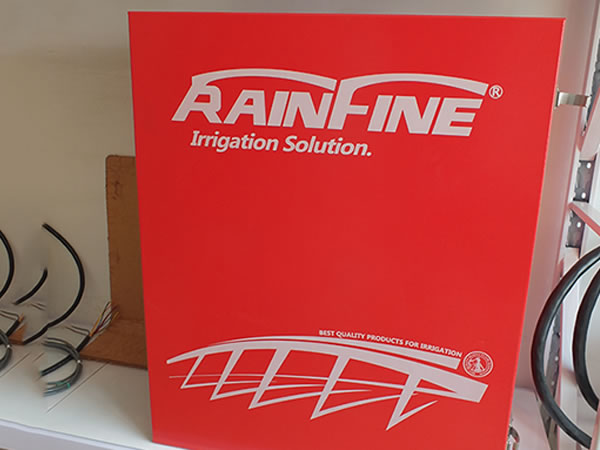

Control panel:
Main breaker
Control transformer
Start and stop switch
Main contactor
Monitoring indicators
Forward / reverse contactors rated 600v at 30 amps
Fuses – 30 amps

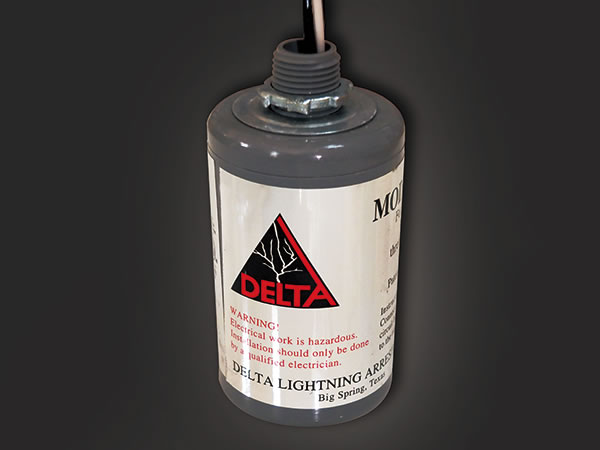

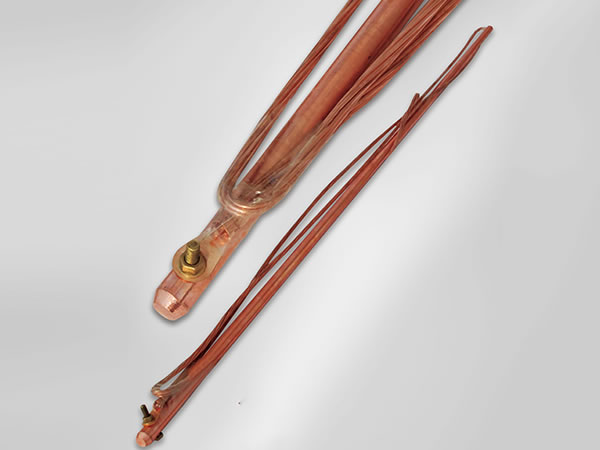

Lightning arrestor

System monitors:
Control power
Pressure
Last tower movement
Control circuit power
Safety circuit status
Reverse control circuit
Forward control circuit
Pump control circuit
Incoming 380V power

Our main control also supports:
No water start stop
Running direction (auto-stop/auto-reverse)
Speed adjusting
Under voltage relay
Over current relay
Emergency stop

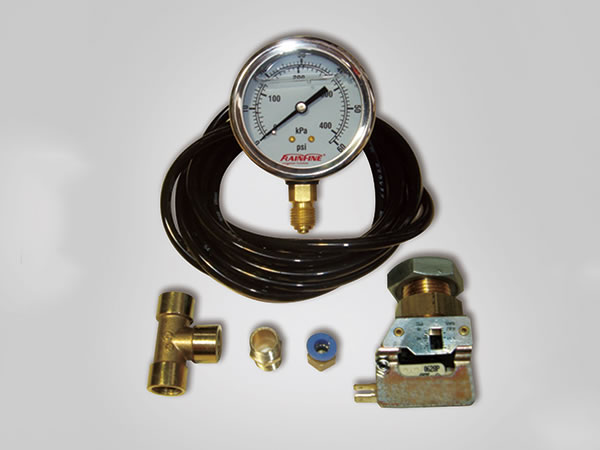

Low water pressure shut off

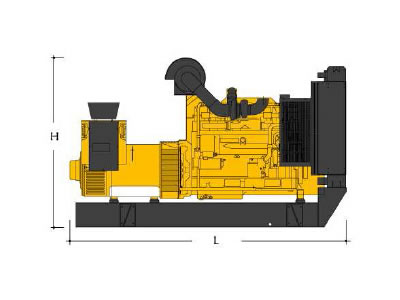

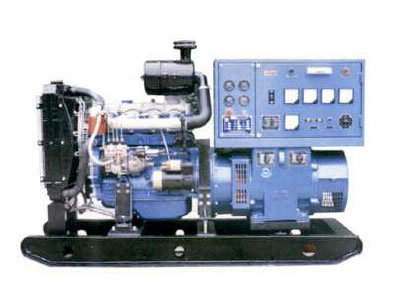

2. Diesel Generator

We offer various diesel generators from 6 to 20kw for pivots and we can supply small diesel generators that most big brands cannot. If you need replacement or spare parts for these generators, contact us.

Specifications
Model No.: PF15GF
Prime Power (kw/k VA): 15/19
Standby Power (kw/k VA): 16.5/20.9
Engine Model: 4L22BD-4
Alternator Model: FD1E
Dimensions (mm): 1360×560×885 Weight (kg): 420

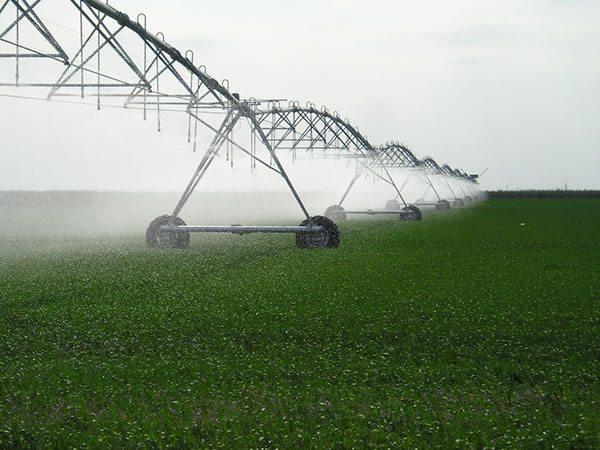

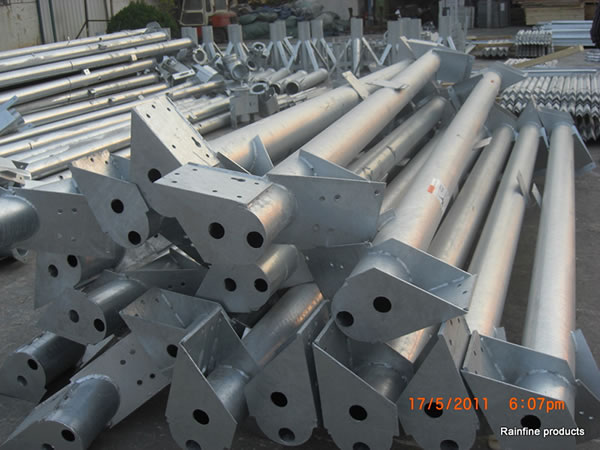

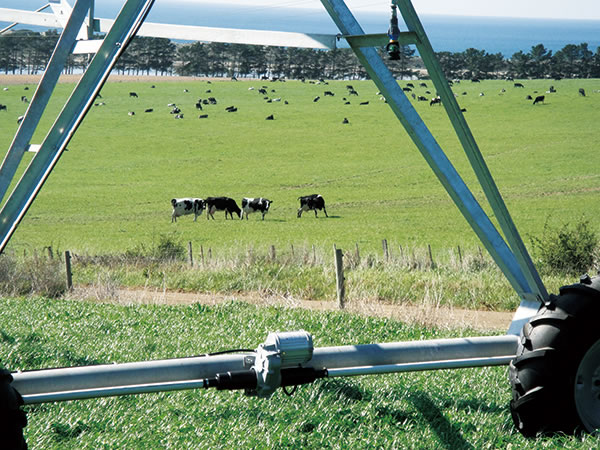

3. Spans

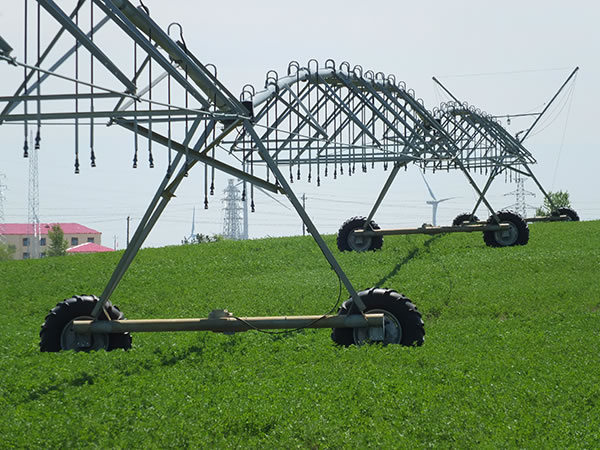

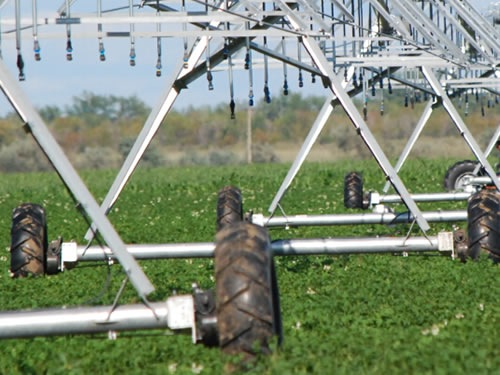

Metallic zinc-coated spans are mounted on intermittent towers, each with two wheels, an axle drive unit with electric gear motor and gearboxes on wheels; the electronic block of the system of the equalization and checking.

The truss design is the most important part of pivot irrigation systems. That’s why Rainfine precisely calculates the structural mechanics and test are pivot systems in tough conditions. Our pivot structures are durable enough to withstand 20 years of work without bending or breaking.

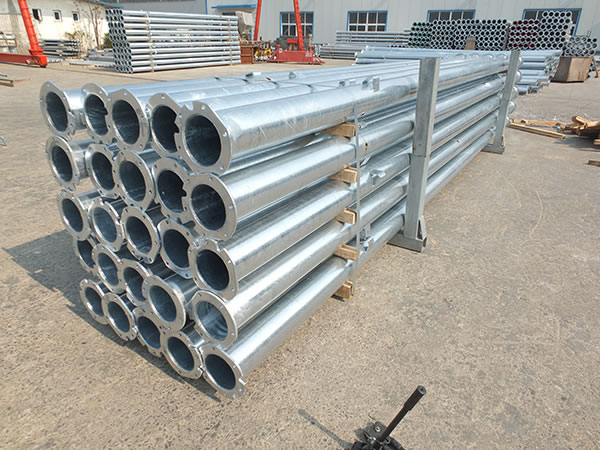

Two pipe options:
1. Galvanized pipe 8", 6 5/8", 5 9/16"
2. Galvanized pipe with poly lining 8", 6 5/8", 5 9/16" for special water

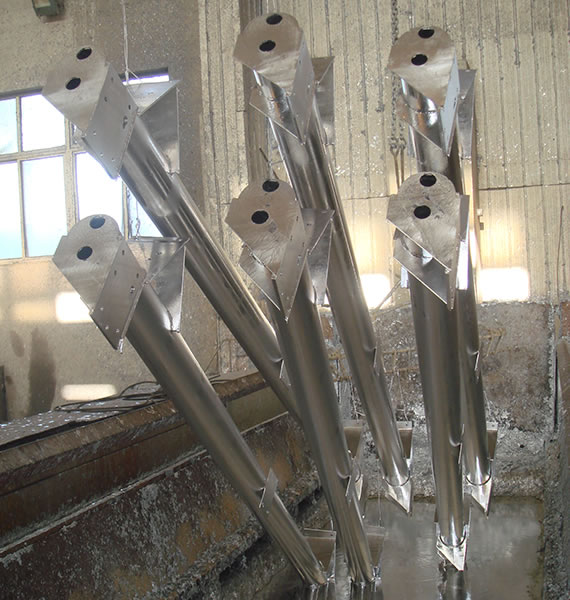

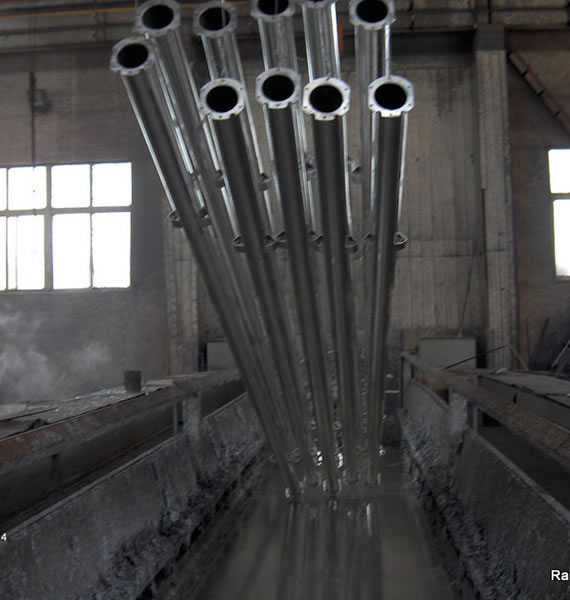

Galvanizing Kettle:
Inside Dimension: 14,000 long × 1,200 wide × 2,000 mm deep
Supplier: By W. Pilling of Riepe, Germany, the world’s leading kettle manufacturer.
50mm wall thickness, European Special Grade Plate (see analysis below)
Typical Analysis: C, .08%; Mn, .5%; P, .02%; S, .02%;Si, traces only
Zinc Volume of Kettle: 90 tons
Weight of Kettle: 25,150 kgs
Quality standards: BS-729, ASTM-A123

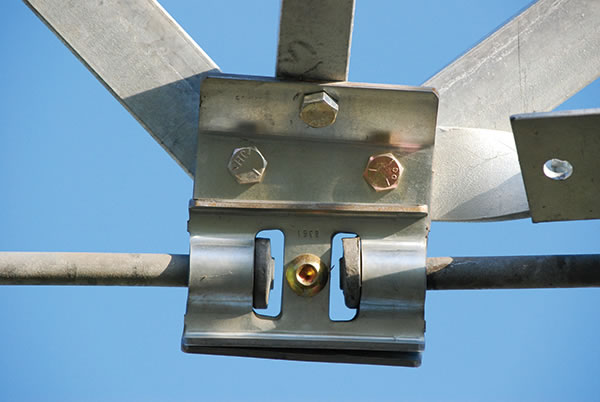

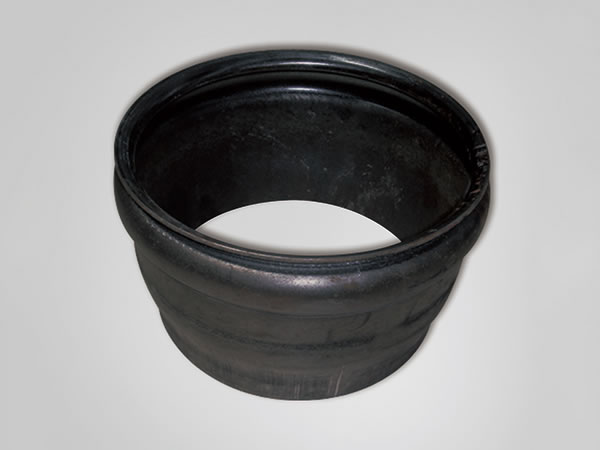

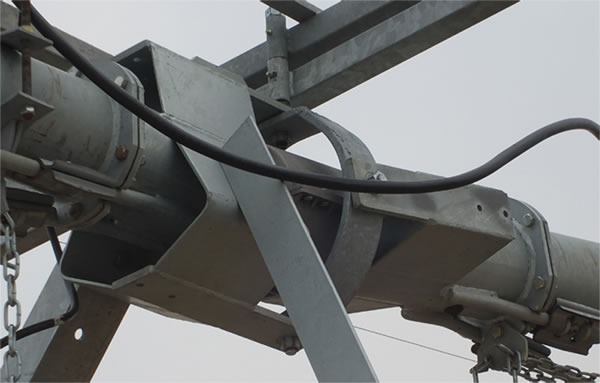

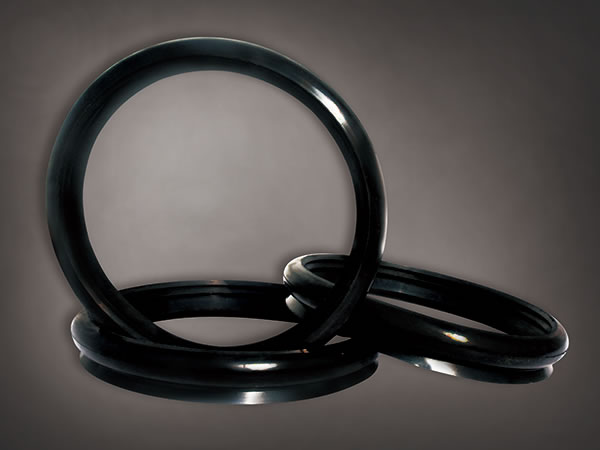

This flexible joint design makes the pivot strong enough and flexible enough to encounter rolling or hilly terrain while in motion. Because the aluminum coupler will break if the spans are not properly aligned, causing water to leak and water pressure to drop, we’ve designed the control panel to switch off the system and stop the machine when the water pressure lowers. Rubber pipe fittings reduce water friction and resistance.

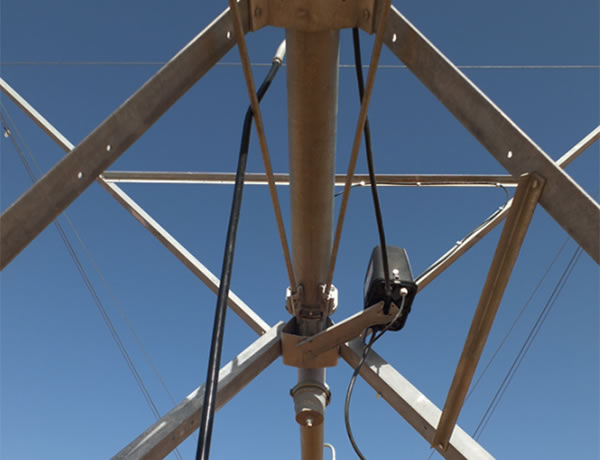

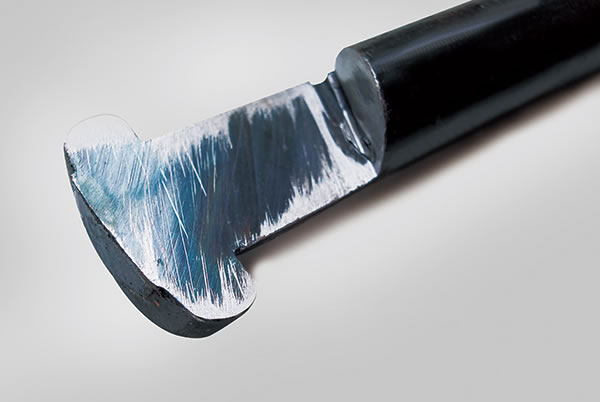

We use a high frequency electric heating system to heat both ends of the steel rods and a head forging machine to form them. When the rod is cut, the steel rod and the headed part have the same molecular makeup. This truss rod can withstand 60,000psi. We use 22mm diameter rods instead of 19mm, making our truss rods stronger than others on the market.

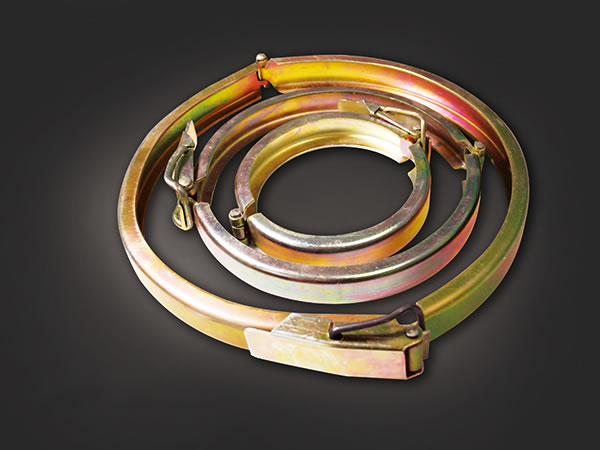

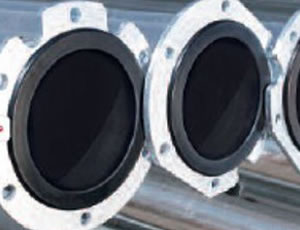

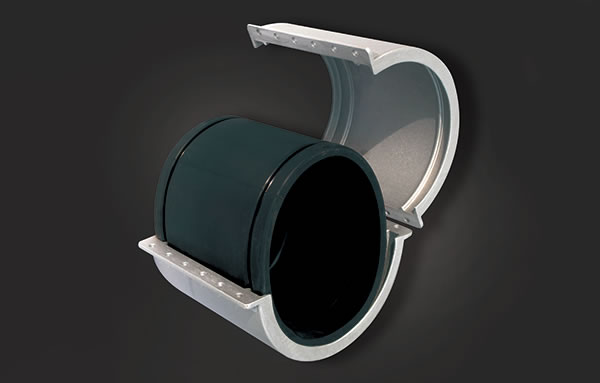

Coupler two options:
1. Traditional UMC coupler (left): no longer used

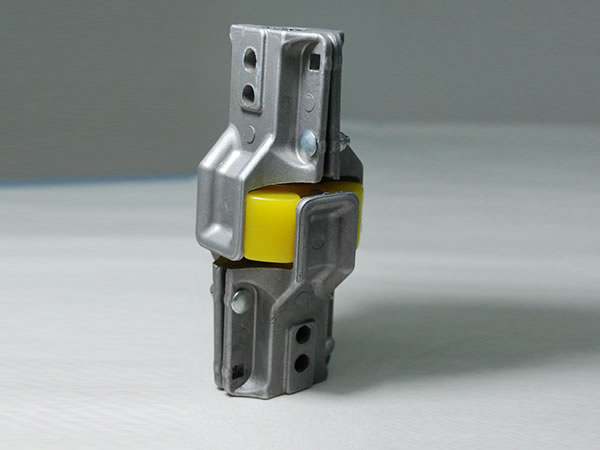

2. UMC C-X Coupler (right)
Units come preassembled
Universal design
Simple one wrench installation
UV stabilized flexible design

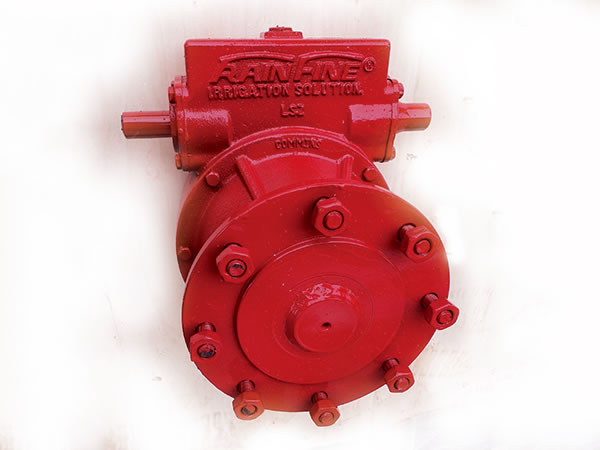

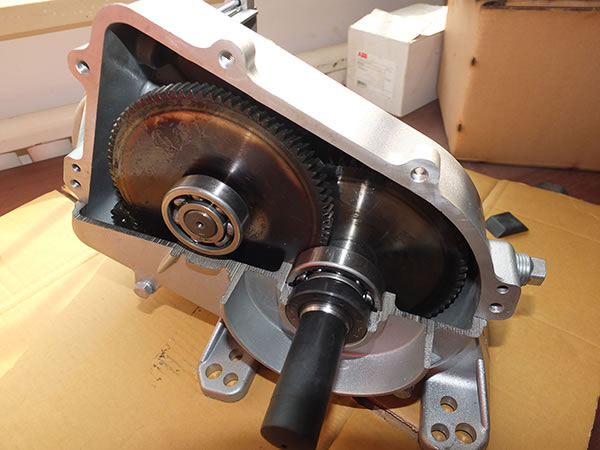

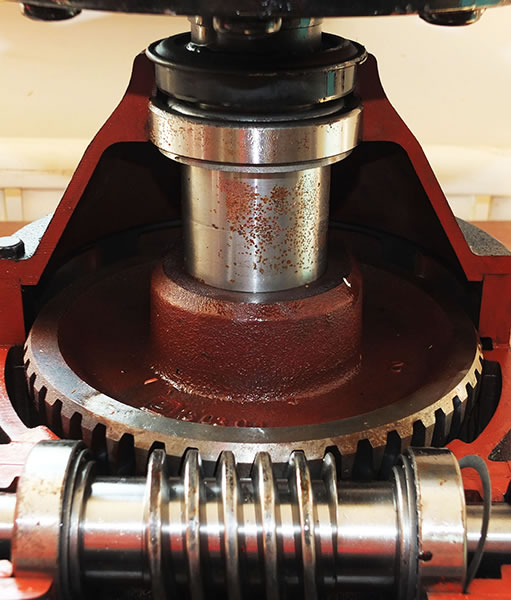

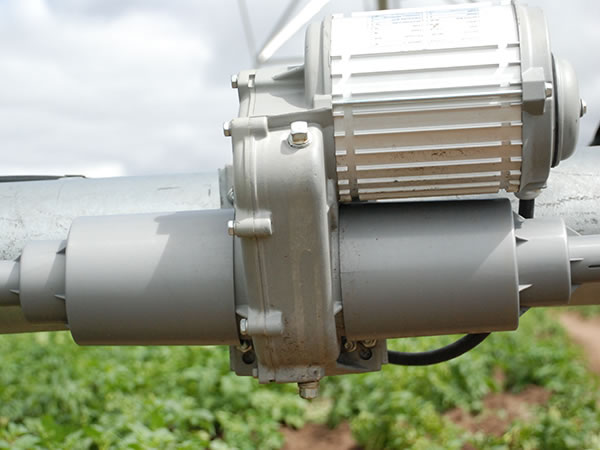

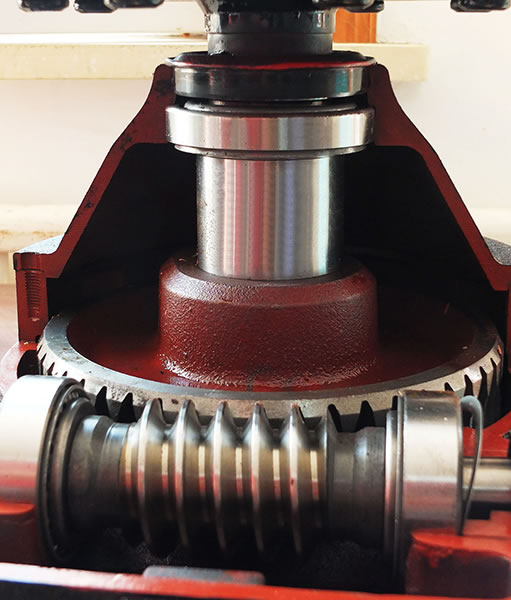

Gear box two options:
1. Cummins standard (left):
Material: Grey Iron HT250
Shaft Material: high-strength forged steel
Worm and gear pressure angle is 14 1/2 degree
2. Rainfine heavy duty (right):
Material: Ductile Iron HT300
Shaft Material: Steel 45

Worm and gear pressure angle is modified
Significant improvement over standard models
Specially designed for use in warmer climates where the pivot is used over 300 days per year

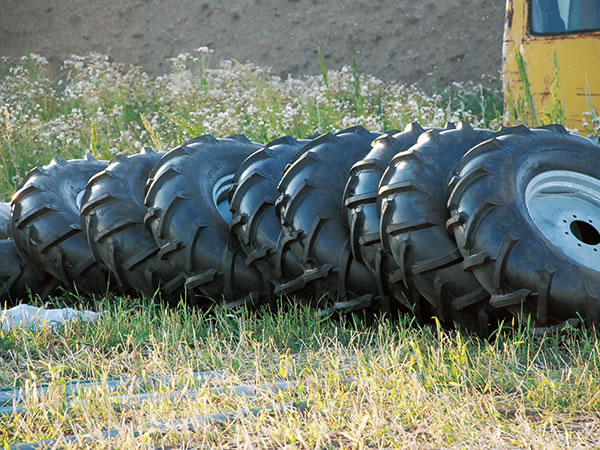

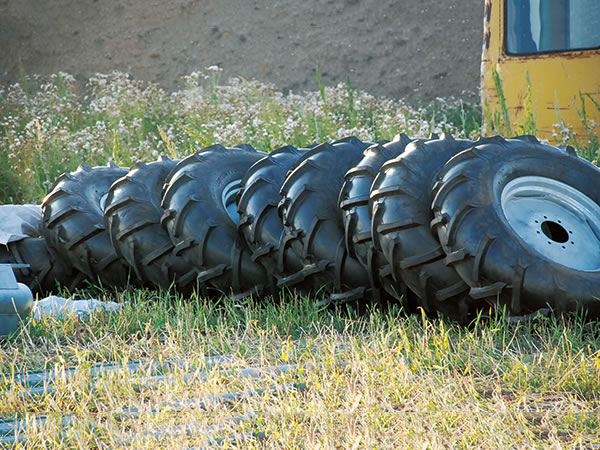

Tire two options:
1. Rubber tire:
11.2×38: Good clearance and flotation
14.9×24: Tubeless tire 4ply, for heavier and longer spans
16.9×24: For longer spans more flotation

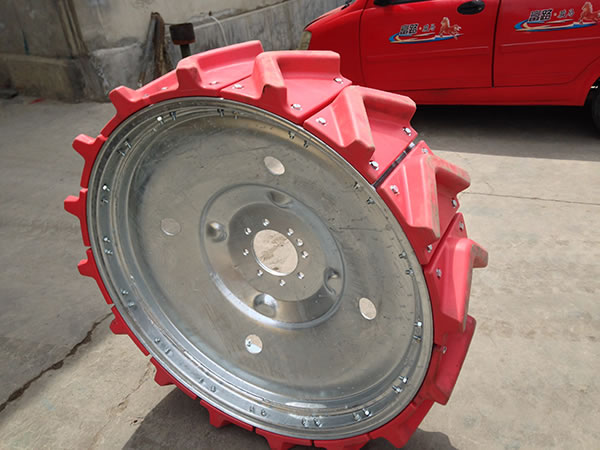

2. Plastic tire:
Rim: 10×38 with plastic pads (16 pcs×4kgs each)
Similar size with 14.9×24 rubber tire
Never flat / UV protection
Pad replacement / Non maintenance

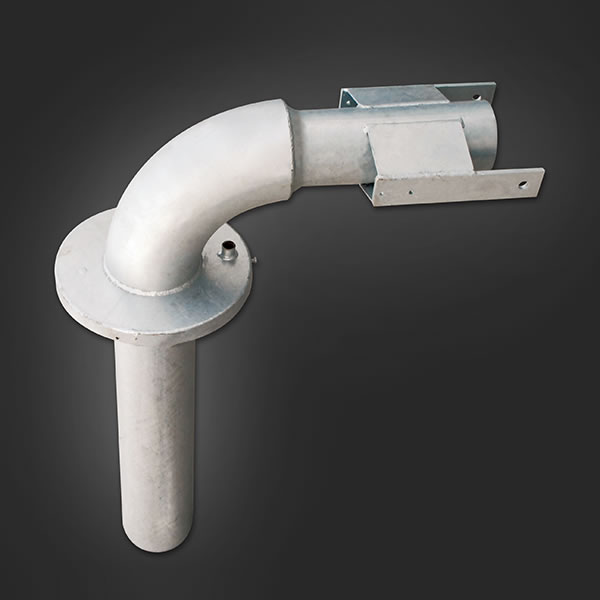

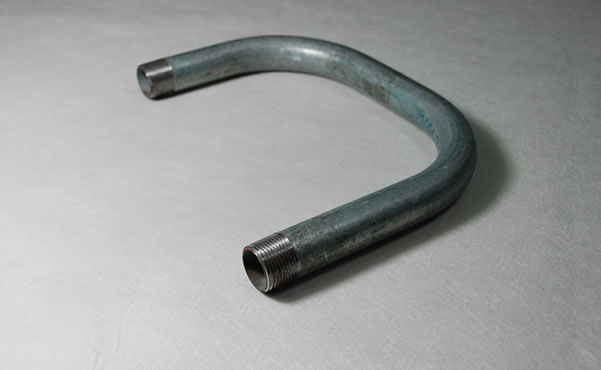

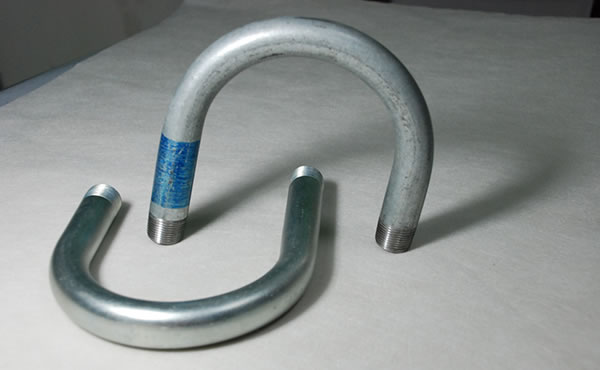

Gooseneck: M X M, M X F, M X B, Furrow arm and standard

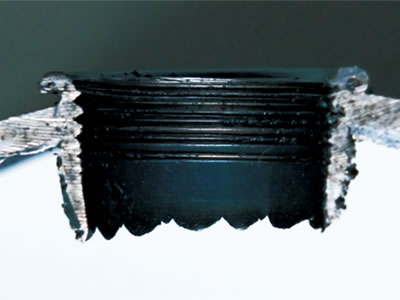

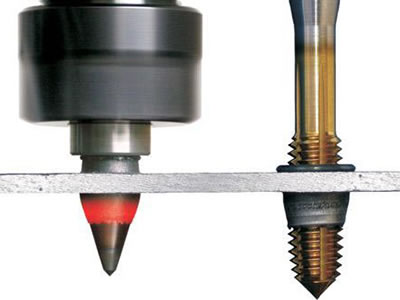

We use automatic welding to make high quality and uniform span pipes. Using form drill technology developed inGermanygives gooseneck pipes a strong connection to pipe outlets, reducing any damage to the gooseneck when the sprinklers vibrate.

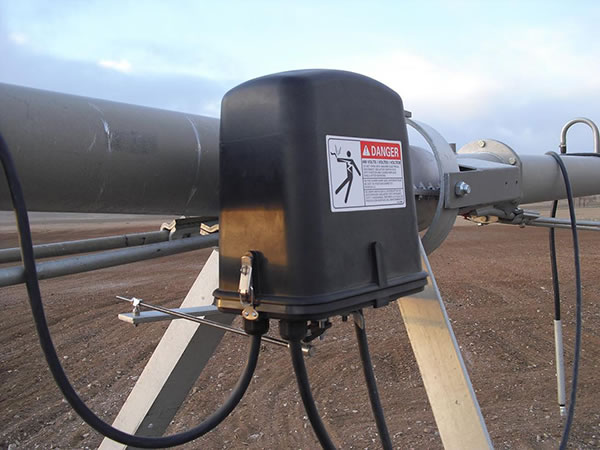

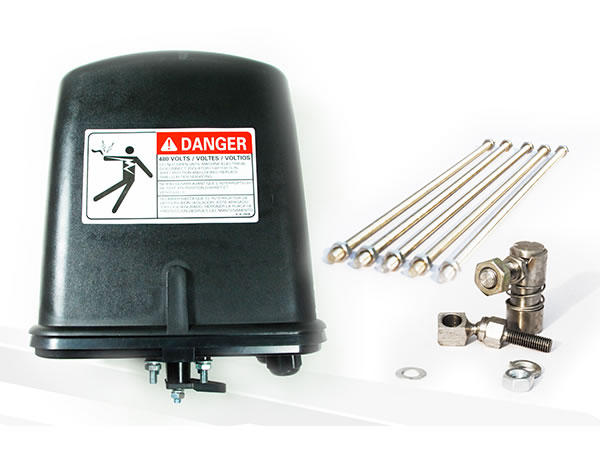

Tower box:
Contactor rated 600V at 16 amp min.
Alignment switches rated 277V at 15 amp tested to 10,000,000 cycles.
On-off switch rated 600V at 10 amps.

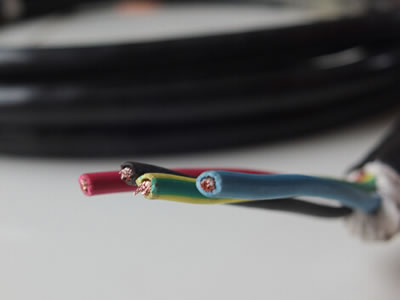

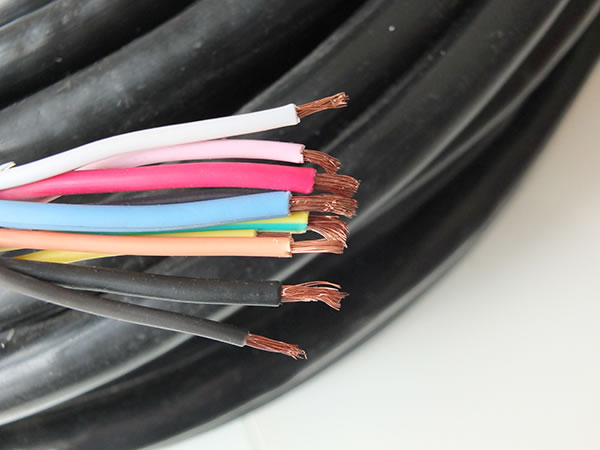

Cable Specification
4# 14 gauge, 6# 18 gauge
4# 12 gauge, 6# 14 gauge
4# 10 gauge, 6# 14gauge
Inner PVC cover 30 mil thick
8 mil aluminum shield
Outer high-density polyethylene cover is 15 mil thick
Sunlight resistant
Moisture and dirt protection

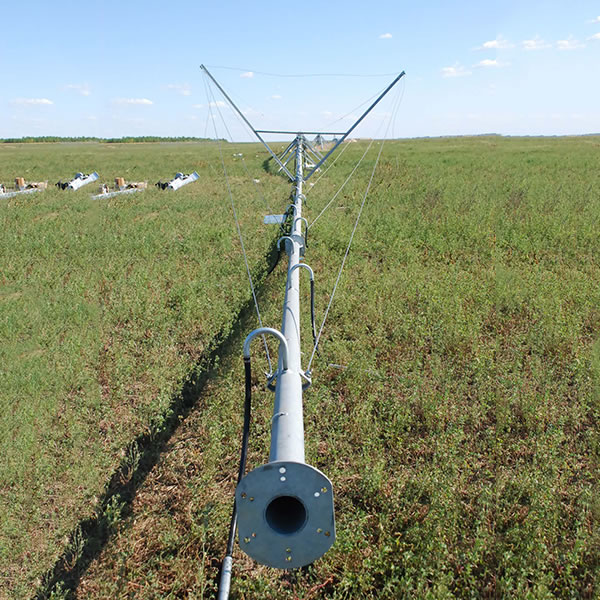

4. Overhang

The high yield strength overhang cable is used in longer overhangs. This design helps farmers to increase their yield with less investment.

Pipe size:
Φ141mm×3mm
Φ102mm×3mm
Overhang length:
6.70/13.41/20.12/26.82m

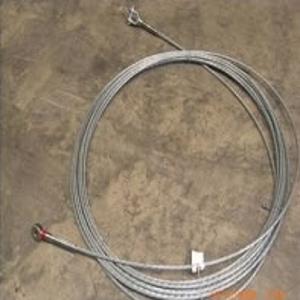

Cable size:
RF38213”O” Φ6×5.893M
RF38211”O” Φ6×19.526M
RF38210”O” Φ9×13.106M
RF38214”OW” Φ6×5.435M
RF101623”U” Φ6×6.858M
RF38209”OU” Φ9×25.133M
RF38215”OU” Φ9×14.376M
RF38212”O” Φ6×26.054M

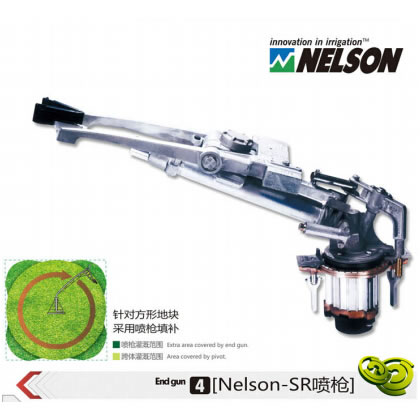

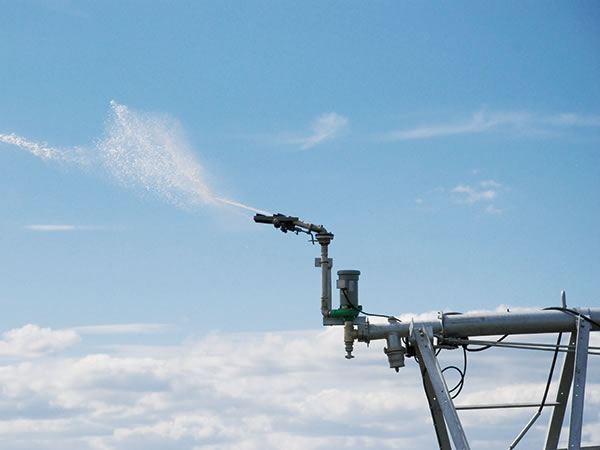

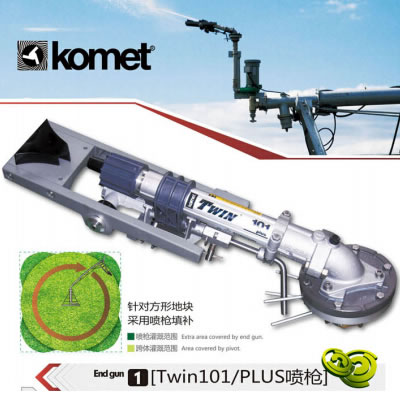

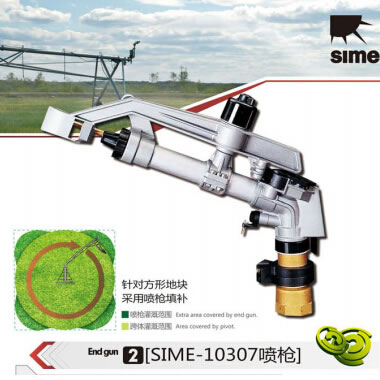

5. End Gun

Corner control system for end gun
When the pivot moves near corners, the end gun will switch on/off by solenoid valve so it can water more area. This valve is controlled by switches in the pivot center.

6. Sprinkler

The vast differences in crops, soils, farming practices and climatic conditions worldwide, coupled with the availability of water and energy resources, requires a range of center pivot sprinkler performances. Our sprinklers are designed to simplify the variety of choices into one basic and versatile group of center pivot products.

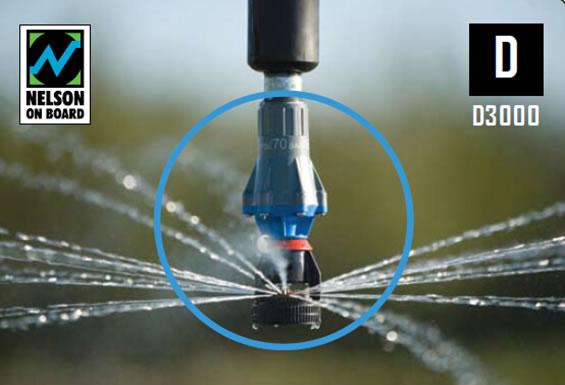

D3000
A fixed-spray sprinkler which produces a variety of patterns depending upon specific spray plates;
Flip-over dual spray allows easy conversion of spray patterns;
Choose spray plate options to germinate, irrigate, or chemigate;
Optional hose drag adapter for Low Energy Precision Application - LEPA;
Part circles available.

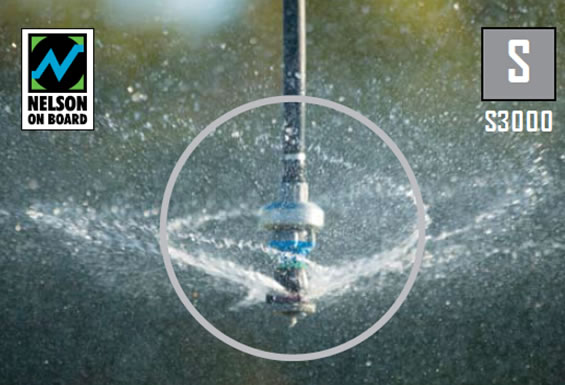

S3000
Gentle spray at low pressure;
Utilize a free-spinning acting to produce a gentle, rain-like water pattern;
Designed for more sensitive crops and soils;
Superior uniformity with better overlap and lower application rates;
Crop-guarded body for low energy;
Part circles available.

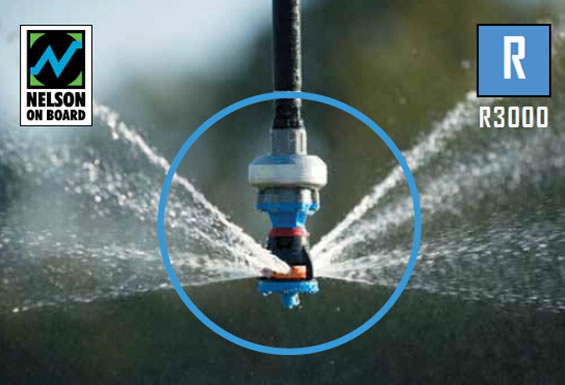

R3000
A greater spray radius from rotating streams equates to lower average application rates, longer soak times and less runoff;
Increased overlap from adjacent sprinklers improves uniformity;
Reduces wind drift and evaporative loss;
Part circles available.

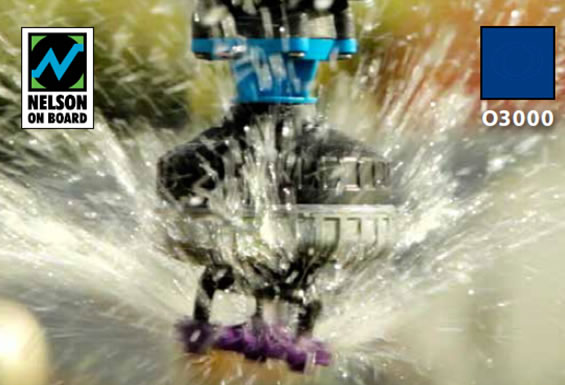

O3000
Outstanding uniformity at low operating pressures;
Unassembled bracket eliminates debris hang-up and water-pattern misting that’s common to conventional sprinklers;
Long service life, reliable operation and durability;
Excellent water application, 10-20 PSI operating pressure;
Wind resistant, maximum water and energy conservation.

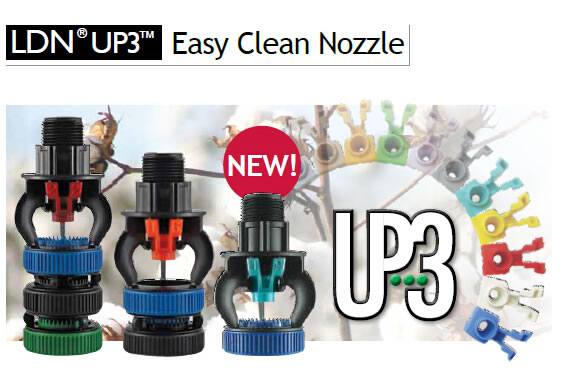

LDN
Minimized losses to wind drift, evaporation and runoff;
Multiple deflector pad design;
Sturdy design for traveling through tall crops;
Low pressure – 6 to 15 psi;
Chemigation pads produce an upward spray under the crop canopy;
Bubbler pad applies water in a gentle, aerated pattern ideal for direct-to-furrow irrigation;

i-Wobs
Unique off-center rotary action, outstanding uniformity;
Gentle, rain-like application;
Excellent spray distance;
Low pressure operation from 10 to 20 psi saves energy over the course of a year.

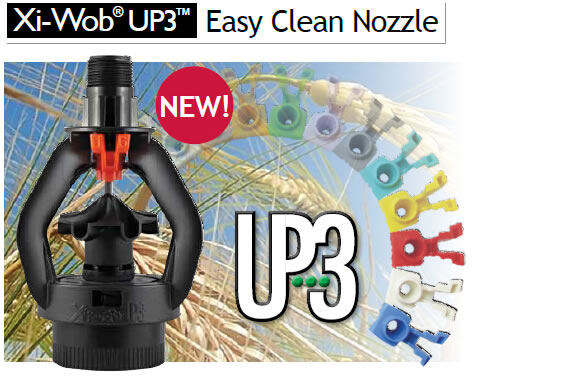

Xi-Wob
Large area of coverage
Ultra low pressure
Easy to clean and easy to change the nozzle
Droplet size needed for type of soil
Uniformity affects
Application intensity
Excellent spray distance

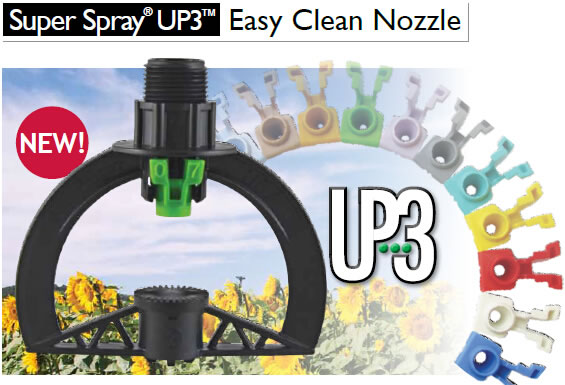

Super Spray
Wide variety of color-coded deflector pads to customize distribution pattern;
Full 360 degree spray pattern;
Low-pressure operation: 6-25 psi;
Chemigation pads and hose barb adapter available.

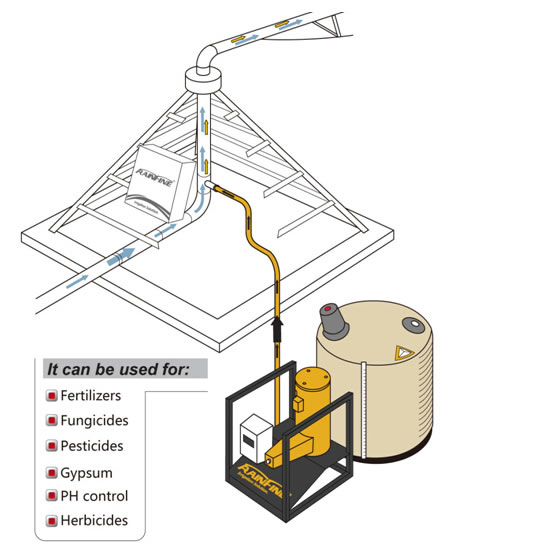

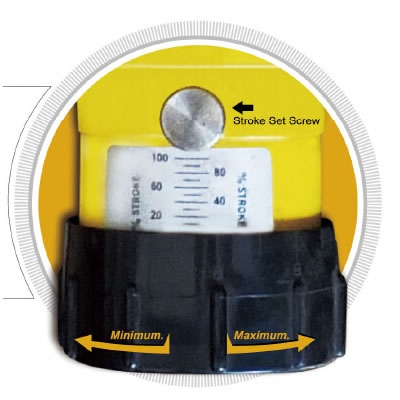

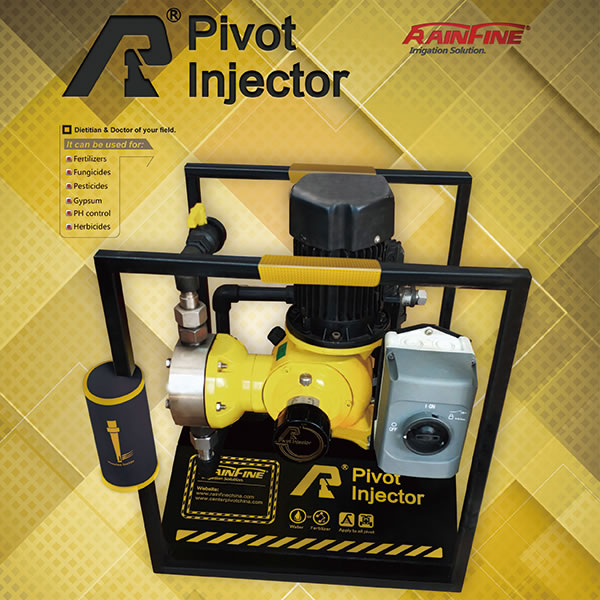

7. Chemical Injector

The chemical injector has a capacity of 85 to 500 LPH and a maximum pressure of 12 bar. Measuring accuracy is +/- 2% with a flow rate of 10% – 100%.

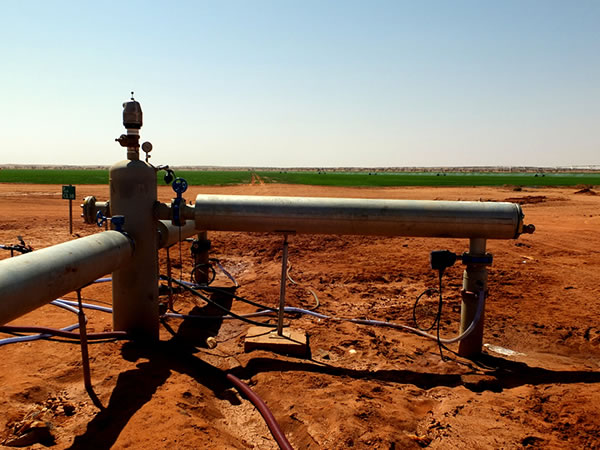

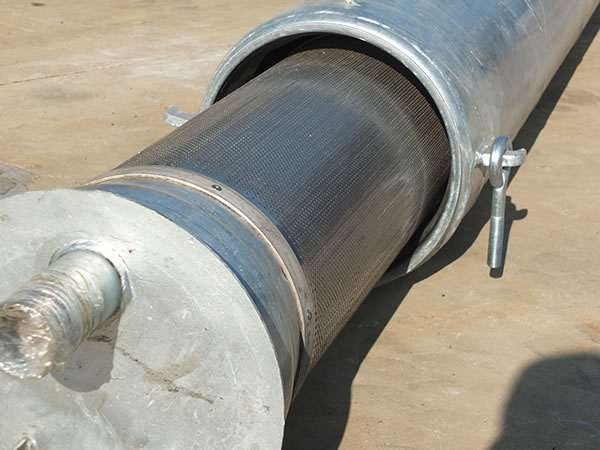

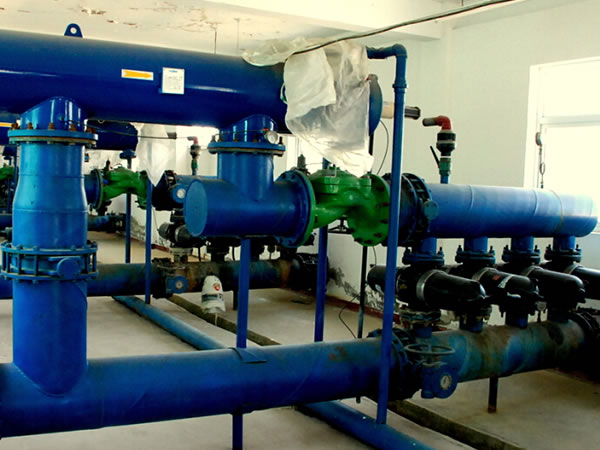

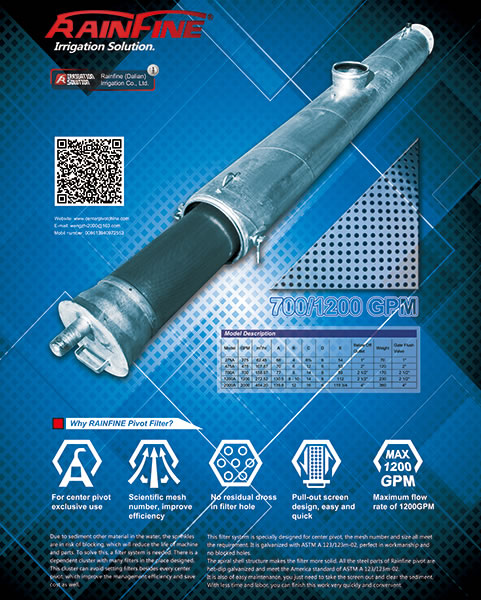

8. Multiple Filters

Though pivots only need one filter, multiple filters are good optional parts for when one filter fills too quickly with dirt. The picture on the left is a cluster system with 3 filters for 3 pivots. The second picture is the filter system being used together with a segmented filter for more effective drip irrigation.

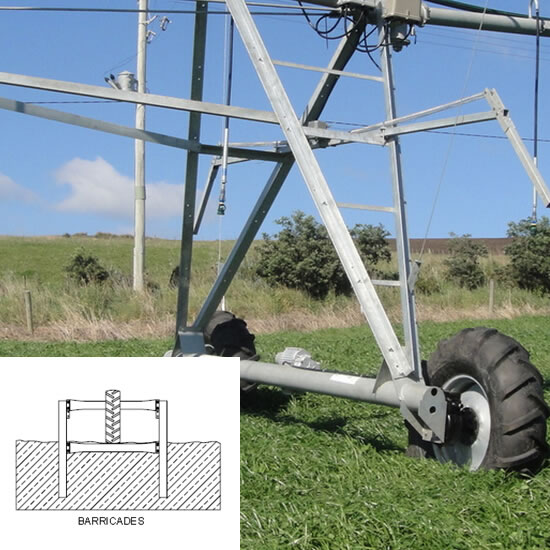

9. Auto Reverse and Stop System

Due to factors such as the terrain, barns and houses, and other obstacles, the pivot may not be able to work a full circle. An automatic stop and reverse controls the pivot to avoid collision. A barricade on the last tower of the pivot works so that when hit by a sensor arm, the pivot will stop and reverse automatically. This system includes a control box, sensor arm, traverse arm, cable and springs, and collision prevention.

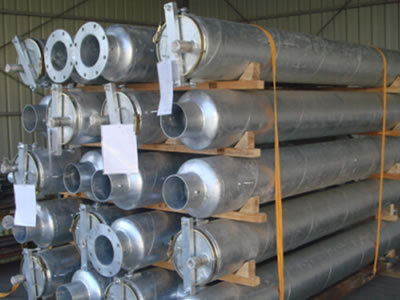

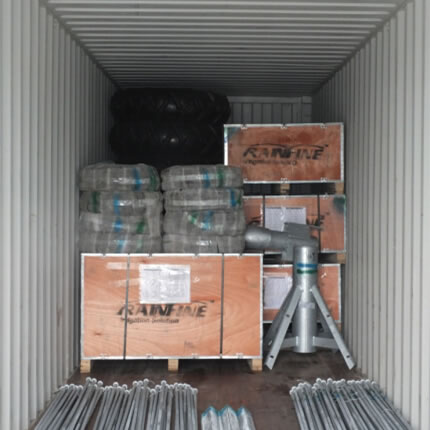

10. Shipment

Each span is packed into one wooden box with a clear packing list and instructions for easy installation. All wooden boxes are durable for safe exporting. A 500m fixed pivot (9 spans) can be loaded into a 1 x 40’ HC container.

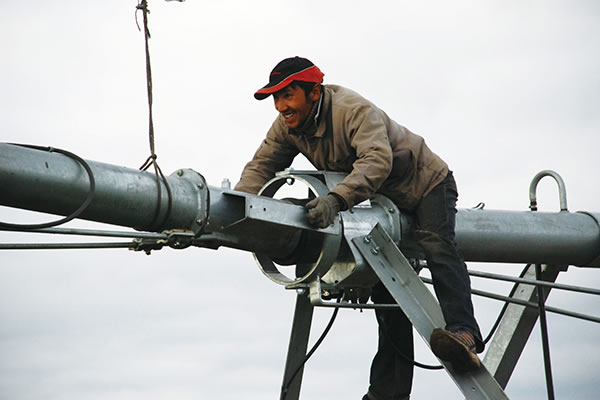

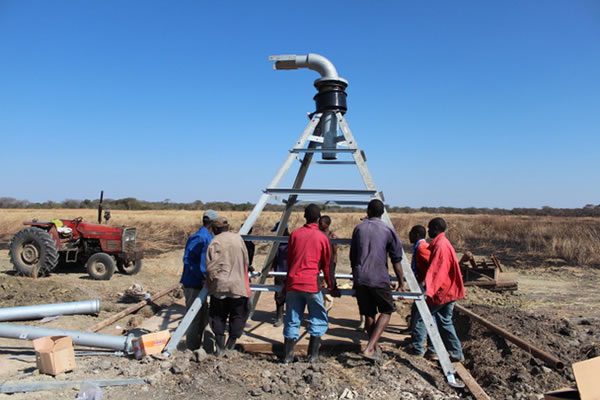

11. Installation

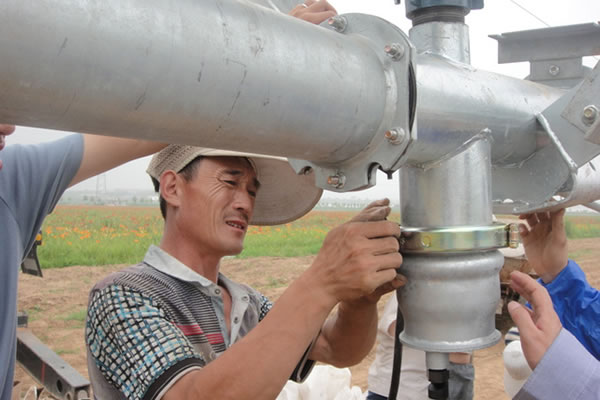

We will send our engineers to supervise installation. Normally one 7-span pivot needs eight people working one week for installation.

12. Spare Parts and Guarantee

We will ship 2% of spare parts together with the equipment in the container, whichever of the spare parts were listed on the contract. Our local representatives or dealers will help farmers replace damaged parts when necessary.

Guarantee:
1 year for electric equipment
10 years/10,000 working hours for gearboxes and gear motors, whichever expires first
20 years for galvanized equipment against corrosion
3 years for tires and rims
